Standard Test Piece

Standard Test Piece

ECAC approved

The product

For routine testing of X-ray machines
Scroll down
Enabling operators to determine if X-ray machines are compliant
Standard Test Piece

Testing image quality

Enabling operators to determine if X-ray machines are compliant

In EU and various non-EU countries it is now a legal obligation to regularly test image quality of security X-ray screening equipment. The Standard Test Piece (STP) is designed to establish whether the X-ray machine is in compliance with current regulations. Obvious changes that might affect its performance to detect and display different densities of materials will be discovered easily.

Different models of the STP are available and optionally special log sheets can be provided. To ensure optimal performance of the X-ray screening systems, it is recommended to use the STP regularly to control that equipment is working properly and according to the legal requirements.

Standard Test Piece Models

Different models are available
  • ECAC Approved

  • MM-STP

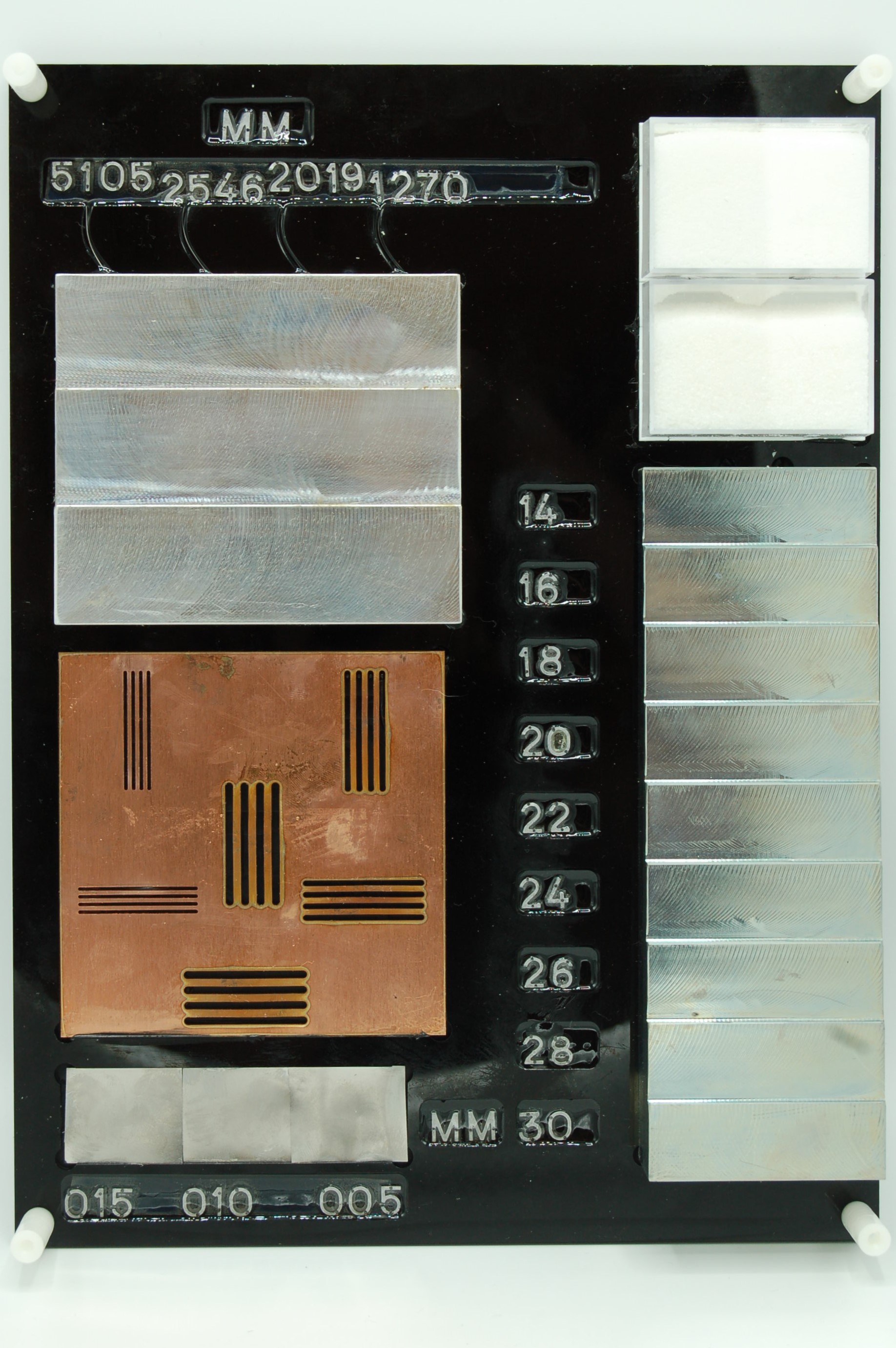

    Standard Test Piece and Exposed Wire STP with resolution in millimeters and with penetration test from 14 mm up to 30 mm designed to comply with ECAC and EU requirements

  • MM- EWeTP

    Exposed Wire Enhanced Test Piece designed for air cargo operations and to be used with high power x-ray machines, in millimeters from 24 mm up to 40 mm and from 30 mm to 44 mm

  • For international use

  • AWG-STP

    Standard Test Piece and Exposed Wire STP, American Wire Gauge-format for single wire resolution and useful penetration with simple penetration from 14 mm up to 30 mm

  • AWG-EWeTP

    Exposed Wire Enhanced Test Piece American Wire Gauge-format designed for air cargo operations and to be used with high power x-ray machines, in millimeters from 24 mm to 40 mm and from 30 mm to 44 mm

Standard Test Piece Models Different models are available

Contact

Questions or more information on the Standard Test Piece?
  • ECAC approved
  • Supporting documents for various regions available
  • Sample STP log sheet available
